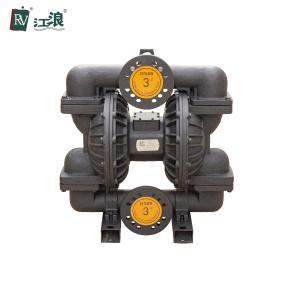

Industrial Coating Pneumatic Diaphragm Pump Chemical transfers 3 Inch

Brand Name : RV

Model Number : RVE-K6311-F

Certification : CE , ATEX ,ISO9001

Place of Origin : China

MOQ : 1 SET

Price : Negotiate

Payment Terms : L/C, T/T, Western Union, D/A, D/P, Paypal

Supply Ability : 10000 SET Month

Delivery Time : 1-7working day

Packaging Details : Carton / Woodencase/ Pallet

Pump Materal : Ductile Iron

Typical Fluids Handled : Chemicals

Typical Application : Chemical transfers

Max. Free Flow Delivery : 1022 lpm

Max. Pump Speed : 135 cpm

Displacement per cycle : 2.0 gallon (7.6 liter)

Size : 3 inch

Noise Level : lower than 75 db

Max. Fluid Working Pressure : 120 psi

Contact Now

3 Inch Industrial Coating Large Pneumatic Diaphragm Pump

Pneumatic Diaphragm Pump Features:

1. Because it is using air as power, the diaphragm pump does not heat and produce sparks; suitable for use in flammable and
explosive environment.
2. Use PTFE diaphragm, can be used for chemical properties relatively volatile liquid, corrosive medium.
3. Diaphragm Pump can pump particle liquid;
4. The liquid can be conveyed by diaphragm pump is wide, the viscosity from low to high, from corrosive liquid to viscous liquid.

Max Working Pressure	120 psi(0.84Mpa, 8.4bar)
Max Flow Rate	270 gpm ( 1022lpm )
Max Reciprocating Speed	135 cpm
Max Suction Height (Dry Sucking)	5m
Max Permitted Grain	0.37 in ( 9.4mm)
Max Air Consumption	180scfm(90L/s)
Air Inlet Size	3/4 in.npt(f)
Air Outlet Size	1 in.npt(f)
Fluid Inlet Size	3 in.
Fluid Outlet Size	3 in.
Net Weight	Ductile Iron 115kg

Exterior dimension drawing

Display

Industrial Coating Pneumatic Diaphragm Pump Chemical transfers 3 Inch

Packing & Shipping:
Industrial Coating Pneumatic Diaphragm Pump Chemical transfers 3 Inch
DIAPHRAGM OPTIONS
PTFE
Santoprene
Buna-N
Hytrel

Neoprene

VERSATILITY

This air diaphragm pump handles viscous fluids, slurries, solid laden fluids, no priming needed, no foaming of fluid pumped, no stall damages, portable

Industrial Coating Pneumatic Diaphragm Pump Chemical transfers 3 Inch

INSTALLATION
Be sure the mounting can support the weight of the air diaphragm pump, hoses, and accessories, as well as the stress during operation progress.

During installation, make sure that the air diaphragm pump has been fixed with bolts on the mounting feet.

In order to facilitate the operation and maintenance, the maintenance space should be enough during installing the air diaphragm pump.

While fastening the air diaphragm pump, rubber pad can be padded to reduce the noise and vibration during operation.
