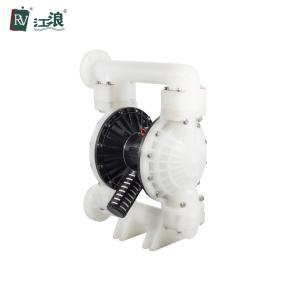

1 1/2" Plastic PTFE Air Operated Diaphragm Pump For Chemical Solvent Industry
Pneumatic Diaphragm Pump Characteristics:
- air operated diaphragm pump have good suction lift characteristics, some are low pressure pumps with low flow rates; others are capable of higher flow rates, dependent on the effective working diameter of the diaphragm and its stroke length. They can handle sluges and slurries with a relatively high amount of grit and solid content.
- air operated diaphragm pump design separates pump fluids from potentially sensitive internal pump parts
- internal pump parts are often suspended and isolated within oil, to promote pump longevity
- suitable for abrasive, corrosive solutions
- have good dry running characteristics.
- are used to make air operated diaphragm pumps for the filters on small tanks
- can be up to 97% efficient.
- have good self priming capabilities.
-
| Usage | Air Pump |
| Max Flow Rate | 118 gpm(446lpm) |
| Structure | Air Diaphragm Pump |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.2 in(5mm) |
| Warranty | 12 months |
| Air Inlet Size | 1/2 in.npt(f) |
| Wetted End | PP |
| Fluid Inlet Size | 1 1/2 in. |
| Fluid Outlet Size | 1 1/2 in. |
| Net Weight | 15.6 KG |
Packing & Shipping:
Our service
Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.
Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
