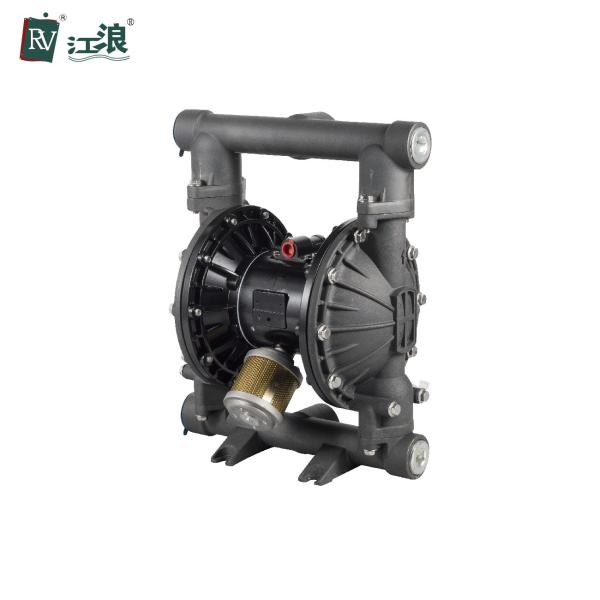

1" AODD Air Driven Diaphragm Pump PTFE Membranes Coating Treatment
AODD Diaphragm Pump Water Treatment Industry
1.Iding capability,self suction,no comples control.
2.Bolt joint design provides even sealing pressure for optimal performance.
3.Diversity of material,no rotating parts,applicable to various erosive situatons.
4.Diaphragm,ball and ball seat adopt imported materials with longer service life.
5.Modular air valve for stall-free,low pulsation operation,providing smooth and rapid changeover.
6.The delivery lift and flow can pass the pneumatic valve open to realize the stepless adiustment.
MAXIMUM LIQUID TEMPERATURE FOR RUBBER PARTS
| Max Working Pressure | 120 psi(0.8Mpa, 8.4bar) |
| Max Flow Rate | 40 gpm(150lpm) |
| Max Reciprocating Speed | 276 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.16 in(4mm) |
| Max Air Consumption | 45scfm(22.5L/s) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 1 in. |
| Fluid Outlet Size | 1 in. |
| Net Weight | Aluminum air diaphragm pump 8.2kg
|
ALL OF AODD PUMP WHICH HELP YOU TO:
- transfer an extensive variety of materials efficiently across a range of industries
- reduce down time and cleaning costs.
APPLICATIONS FOR AODD PUMP:
- Chemical
- Cosmetics and personal care
- Paints
- Pharmaceutical
- Adhesive
- Hygienic
- Food and beverage.
Our service
AODD pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.
Company Introduction:
Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.
Air diaphragm pump (AODD)pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.
Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".
FAQ
Q1. Can I have a sample order for AODD pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
