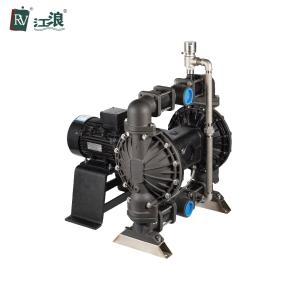

Double Electric Motor Driven Diaphragm Pump For Painting Coating 2 Inch
Motor Diaphragm Pump Introduction:
Motor diaphragm pump is a new type of transport device, used to transport various materials like liquid, slurry, powder, even of high viscosity, volatile, flammable, highly toxic liquid.
Motor diaphragm pump for powder is featured of high transportation efficiency, non-blocking, excellent sealing, various materials etc. The powder pump supplied by us can be applied in various dry powder like coating material, carbon powder, clay/kaolin, limestone powder, plastic particles, flour, grain particles etc light powder and particles. The pneumatic diaphragm pump is of total sealing pumping mode to transport the powder directly from containers to reaction tanks, reducing the dust pollution.
Advantages:
1) can work under bad air source, the reversing valve is reliable, not easy broken.
2) smooth air path, no air path obstacle from 1/2'to 3'pump,ensuring a flexible reversing.
3) Reversing valve totally externally maintainable.
4) Less moving parts compared to other diaphragms pumps.
5) pilot type reversing valve with long working life, ensuring the continuous running.
6) one reversing valve suits to different size pumps.
Product Details
| Max Outlet Pressure | 0.6Mpa , 6bar |
| Max Flow Rate | 10.5m³/h |
| Max Suction Lift | 3m |
| Motor Power | 3KW in standard (Senior4.0KW as options ) |
| Motor Speed | 1450r/min |
| Fluid Inlet Size | 2 inch Threaded or Flange |
| Fluid Outlet Size | 2 inch Threaded or Flange |
| Weight | Stainless steel pump: 122 KGS Aluminum pump: 77KGS Carbon steel pump: 115KGS |
Exterior dimension drawing
Packing & Shipping:
Diaphragm: longer life time
1. Our raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin and Saint-Gobain etc.
2. Increase the height of the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.
3. Center place with O-ring design, enhance seal performance.
FAQ
1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .
4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet
5. Q: How are the products delivered to us?
A: By International express or Sea.
6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
