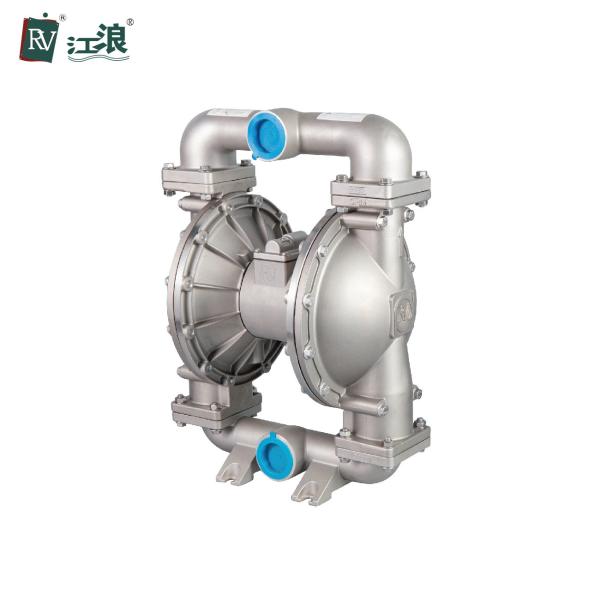

2 " inch Air Operated Diaphragm Pump With Stainless Steel Center Section
Air Operated Diaphragm Pump Introduction:
Considering the alternate output of air operated diaphragm pump, we used central port design to better balance the delivery of the liquid.
Concerning valve seat and O-rings, there are three O-ring grooves on each seat, two big sizes and one small size.
The normal configuration is two big size O-rings. But when dealing with solvents with strong permeability, one big size and one small size will be used to achieve better sealing.
For extension, this air operated diaphragm diaphragm pump can be equipped with a detecting device.
Its real-time working condition can be monitored on the mobile terminal by adding data, single chip and cloud technology.
| Max Working Pressure | 120 psi(0.84Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm ( 570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 4mm |
| Max Air Consumption | 140 scfm ( 70L/s) |
| Air Inlet Size | 1/2 in.npt (f) 4 |
| Air Outlet Size | 3/4 in.npt (f) |
| Fluid Inlet Size | 2 in.npt (f) |
| Fluid Outlet Size | 2 in.npt (f) |
| Weight | SST pump 58kg |
Packing & Shipping:
Air Operated Diaphragm Pump
Wetted Body Material: Stainless Steel 304/ 316
Center Air Chamber Material: Stainless Steel 304
Diaphragm material: PTFE , Santoprene, , Hytrel, Buna-N
It is suitable for the transportation of glycol, alcohol, sodium hydroxide, nitric acid, carbonic acid, fruit acid, enzyme, caustic soda, ammonia, asphalt, and some acid & alkali liquid...
Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
The air operated diaphragm pumps and valves have been granted more than 40 patents, including 10 invention patents.
Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.
Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
